Manage Traffic Using Kubernetes Manifests

The contents of this page refer to alpha features in Spinnaker 1.11.

This means we are working on their stability and usability, as well as possibly adding or changing features. Expect rough edges, and file issues as needed.

This guide shows the basics of how to manage traffic during deployments using Kubernetes Provider V2. This includes automatically attaching a Service to a workload during deployment, and defining pipelines to perform blue/green deployments.

Attach a Service to a Workload

Kubernetes manages the relationship between Pods and Services using Labels and Selectors. Spinnaker acknowledges this relationship with the blue load balancer icon on a workload as shown here:

You can also tell Spinnaker which Service objects a workload should be associated with for its lifetime using the traffic.spinnaker.io/load-balancers annotation. To try this out, do the following:

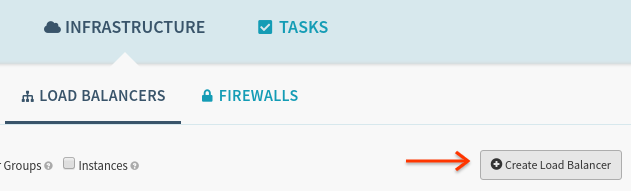

Deploy the following Service using the “Create Load Balancer” button:

kind: Service
apiVersion: v1
metadata:
  name: my-service
spec:
  selector:
    app: myapp
  ports:
  - protocol: TCP
    port: 80

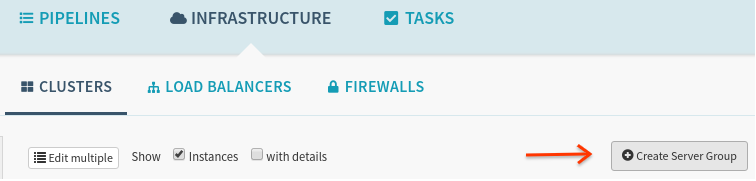

And then deploy the following Replica Set using the “Create Server Group” button:

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: frontend
  labels:
    tier: frontend
  annotations:
    traffic.spinnaker.io/load-balancers: '["service my-service"]' # <-- annotation
spec:
  replicas: 3
  selector:
    matchLabels:
      tier: frontend
  template:
    metadata:
      labels:
        tier: frontend
    spec:
      containers:
      - name: frontend
        image: gcr.io/google_samples/gb-frontend:v3

Notice that the selector app: myapp appearing on the Service did not have to be specified on the Replica Set’s PodSpec; Spinnaker adds this automatically.

Caveats

There are a few caveats when using this annotation:

  • The list of Services supplied in this annotation does not need to specify all Services a workload may be attached to. If your workload’s labels already attach it Service A, and you list Service B in the annotation, both Service A and B will route requests to this workload.

    You can think of this annotation as only supplying the list of additional services to attach to, not as an exhaustive list.

  • If you use this annotation, Spinnaker will edit the workload’s labels, either in the metadata.labels, or spec.template.metadata.labels sections. As a result, if the labels added to or removed from the spec.template.metadata.labels conflict with the label requirements in the object’s spec.selector.match[Labels/Expressions] section, the deployment will fail.

  • This annotation tells Spinnaker which service or services to make traffic changes to. For example, if you specify service “A” in the annotation of a manifest and subsequently disable it, only traffic from service “A” will be disabled, even if you receive traffic from both services “A” and “B”.

Route Traffic During a Deployment (Blue/Green)

Spinnaker supports dynamically enabling and disabling traffic to a particular Kubernetes resource. This can be used in a pipeline to configure Blue/Green rollouts, as shown below.

You Must Use Replica Sets

Spinnaker manages traffic using labels, and has to edit them on running resources. Given that edits to Deployment objects trigger rollouts, the only way to carry out Blue/Green deployments without editing the Service object directly is using Replica Sets, which are safely edited in-place by Spinnaker. To be clear, these label edits are abstracted into higher-level “Enable” and “Disable” stages to manage traffic, and are described below.

In turn, when a user submits a change to a Replica Set (either ad-hoc, or using a pipeline) to update an image, configuration, etc… Spinnaker makes sure to deploy a new Replica Set with a unique -vNNN suffix. This is in contrast with the edits to labels Spinnaker performs in place to manage traffic. The interaction between edits to Replica Sets made by users and those made by Spinnaker will be made clear in the below sample pipeline walkthrough.

Sample Blue/Green Pipeline

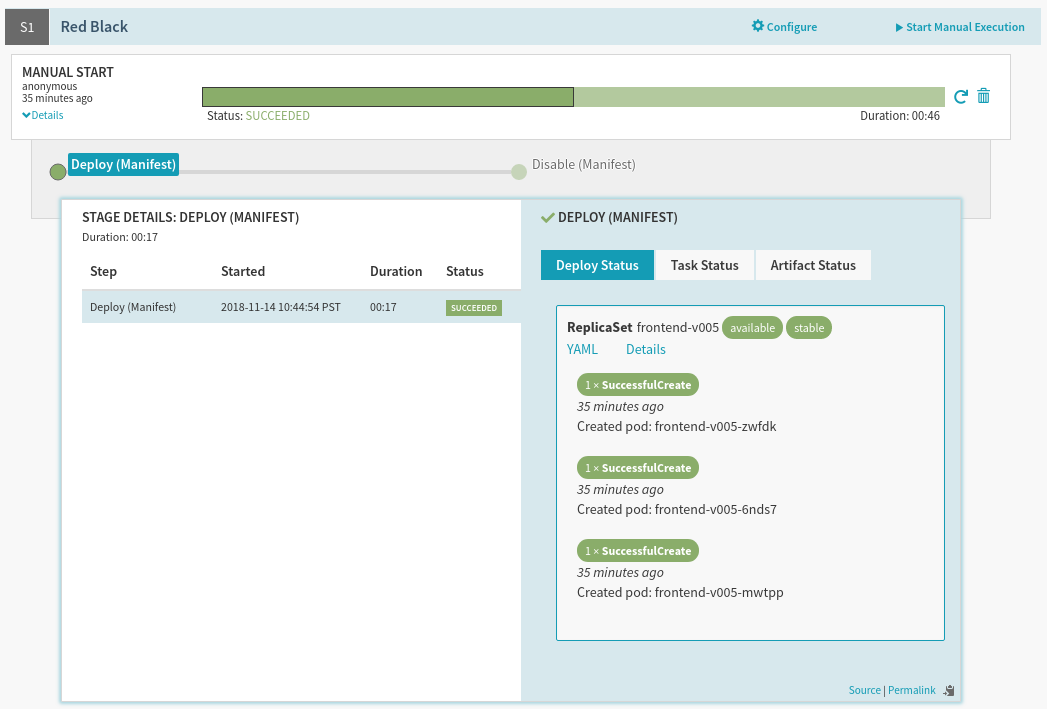

We will create a pipeline with two stages: Deploy, and Disable. The goal is to first deploy a new version of your application, have the stage wait until all Pods’ health checks pass, and then disable the prior version of your application. When completed, an execution of this pipeline will look like:

Prerequisites

You need the following:

  1. Spinnaker with a Kubernetes Provider V2 configured

  2. One service called my-service running in the cluster and namespace your pipeline will deploy to. For the purpose of this example we will assume it has the following specification:

  kind: Service
  apiVersion: v1
  metadata:
    name: my-service
  spec:
    selector:
      app: myapp
    ports:
    - protocol: TCP
      port: 80

Configure the Deploy Stage

Create a pipeline and add a “Deploy (Manifest)” stage, and configure the following (text) manifest to deploy:

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  annotations:
    strategy.spinnaker.io/max-version-history: '2'
    traffic.spinnaker.io/load-balancers: '["service my-service"]'
  labels:
    tier: frontend
  name: frontend
spec:
  replicas: 3
  selector:
    matchLabels:
      tier: frontend
  template:
    metadata:
      labels:
        tier: frontend
    spec:
      containers:
        - image: 'gcr.io/google_samples/gb-frontend:v3'
          name: frontend

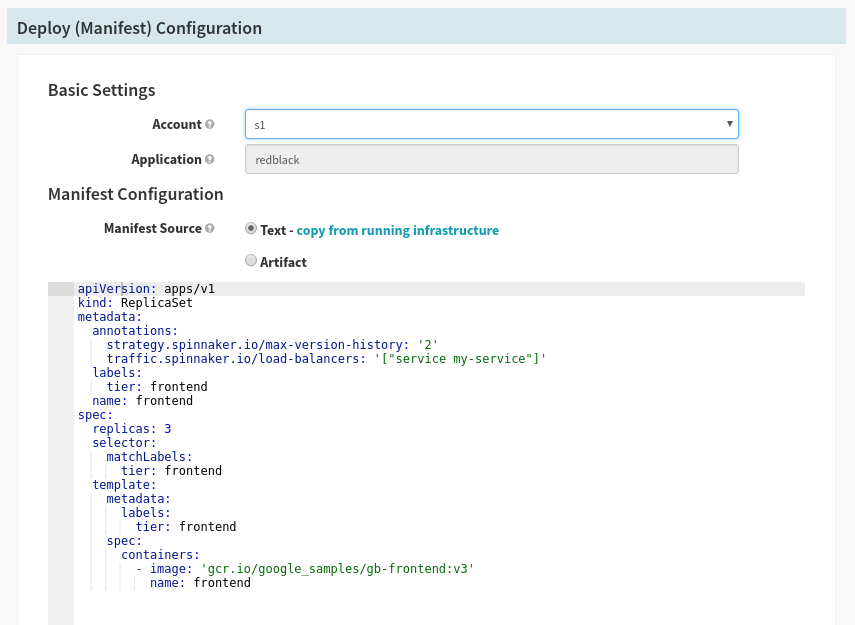

The stage configuration should look like this:

There are two important annotations to pay attention to here:

  • traffic.spinnaker.io/load-balancers

    This annotation is explained above, and and is used here to both indicate to Spinnaker which Service to attach during deployment time, and which Service to detach during the disable stage.

  • strategy.spinnaker.io/max-version-history

    This annotation is explained in the reference section, and is used to ensure that no more than a certain number of versions of this Replica Set are running for garbage collection purposes.

Configure the Disable Stage

Add a “Disable (Manifest)” stage after the Deploy stage, and set the following values:

Field Value
Namespace default
Kind replicaSet
Selector Choose a target dynamically
Cluster replicaSet frontend
Target Second Newest

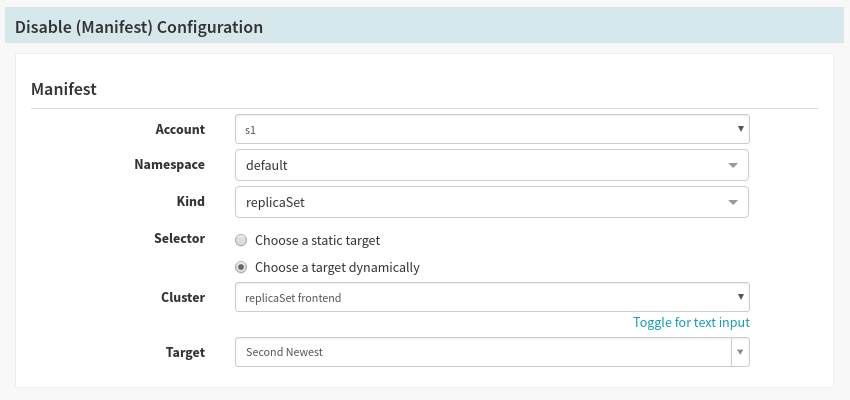

The stage configuration should look like this:

There are two important fields here:

  • Selector: Choose a target dynamically

    With every run of the pipeline a new Replica Set is created, and therefore we cannot know ahead of time which version of the Replica Set to disable. This field allows us to pick a Replica Set based on the Target value.

  • Target: Second Newest

    By picking the Second Newest target, we select the second newest Replica Set when this stage starts, or in other words, what was just previously serving traffic.

Run the Pipeline

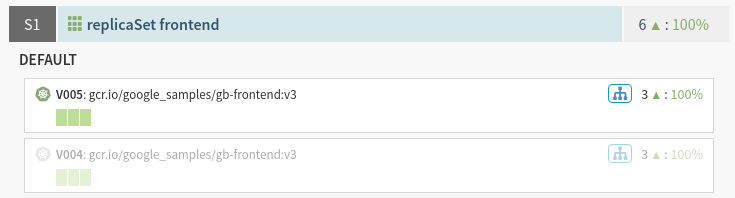

After a few runs of the pipeline, you should see the following in your cluster screen:
