Artifacts In Kubernetes (Manifest Based)

Artifacts play an important role in the Kubernetes Provider V2. Everything from the manifests you deploy, to the Docker images or ConfigMaps they reference can be expressed or deployed in terms of artifacts.

Manifests as Artifacts

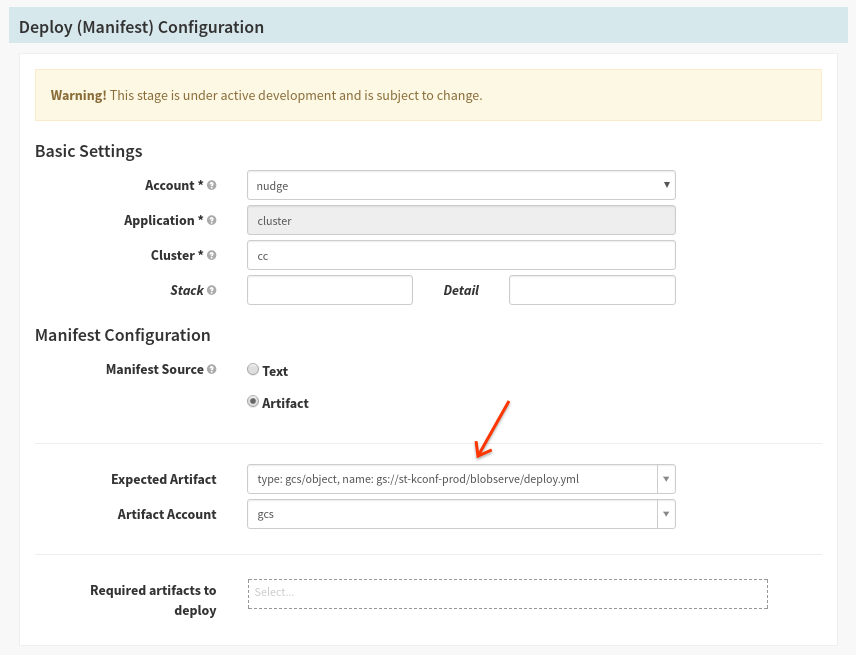

There are two ways to deploy a manifest—either supplied statically to a pipeline as text, or as an artifact. The image below shows a deploy stage deploys a manifest stored in a GCS bucket:

Depending on how this pipeline is configured, it will only run when the referenced file in GCS is modified.

Kubernetes Objects as Artifacts

Once a manifest has been successfully deployed using a pipeline (either from text or an artifact containing text), it is injected back into the pipeline’s context as an output of the deploy stage. Why this is useful is explained below, but for now, focus on the distinction between…

  1. An artifact representing a manifest stored as text in github:
  {
       "type": "github/file",
       "name": "manifests/frontend-configs.yml",
       "reference": "https://api.github.com/repos/your-application/..."
  }
  1. An artifact representing a deployed kubernetes object:
  {
       "type": "kubernetes/configMap",
       "name": "frontend-configs",
       "location": "prod",
       "version": "v001"
  }

As described in the manifests as artifacts section, a deploy stage would consume artifact 1, but produce artifact 2 as an output.

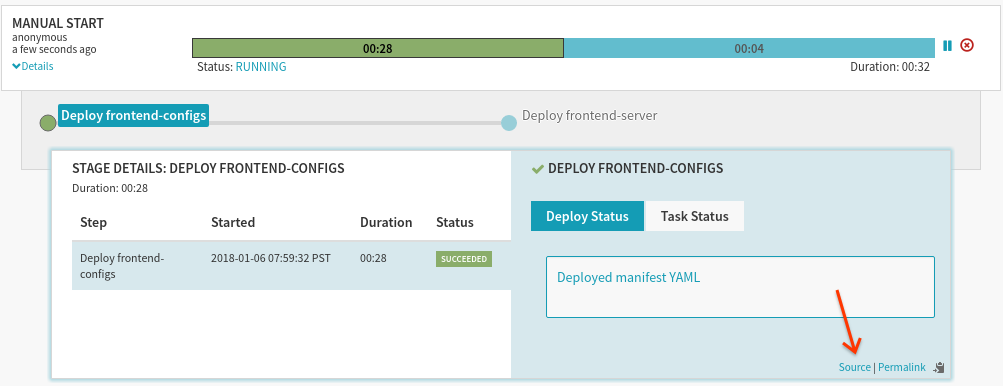

When running pipelines, you can always check the produced outputs for any stage by examinging the execution’s “source” directly:

Versioned Kubernetes Objects

According to the Kubernetes reference documentation, certain resources are “versioned”, meaning that anytime a change is made to an object’s manifest and deployed using Spinnaker, it is redeployed with a new version suffix (-vNNN). This is critical to supporting immutable deployments, as rolling out new ConfigMaps, secrets, or other versioned resources should require any manifests that reference them to be updated as well. Luckily, Spinnaker makes handling these updates easy as explained below.

Binding Artifacts in Manifests

Generally, artifacts represent resources that you update as a part of your deployment/delivery pipelines. Given that Docker images and ConfigMaps are what will likely be updated within a manifest, we provide easy, first-class ways of injecting them into your manifests. If you’re familiar with Pipeline Expressions and are curious why we don’t just rely on those, read why not pipeline expressions below.

Spinnaker binds artifacts in your manifest based on a simple heuristic:

When a field’s referenced type and value match an incoming artifact’s type and name, the field’s value is replaced with the artifact’s reference

A “field’s referenced type” sounds ambiguous, but in practice, it is straightforward. The field spec.template.spec.containers.*.image always refers to a Docker image, so clearly it matches the artifact type docker/image. The field spec.template.spec.volumes.*.configMap.name always refers to a ConfigMap, so it clearly matches the artifact type kubernetes/configMap. The same logic applies throughout.

Let’s go through an example to make this clear:

We have the following manifest to be deployed in a Spinnaker pipeline:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx
  name: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - image: gcr.io/my-images/nginx # possible artifact
          name: nginx
          ports:
            - containerPort: 80
          volumeMounts:
            - mountPath: /opt/config
              name: my-config-map
      volumes:
        - configMap:
            name: configmap             # possible artifact
          name: my-config-map

And when the deploy stage executes, we have the following artifacts in our execution context (likely populated from a trigger event, or prior deployments):

[
  {
    "type": "docker/image",
    "name": "gcr.io/my-images/nginx",
    "reference": "gcr.io/my-images/[email protected]:0cce25b9a55"
  },
  {
    "type": "kubernetes/configMap",
    "name": "configmap",
    "version": "v001",
    "location": "default",
    "reference": "configmap-v001"
  }
]

The ConfigMap and Docker image are replaced by the artifacts in the context, and the resulting manifest is deployed into your cluster:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx
  name: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - image: gcr.io/my-images/[email protected]:0cce25b9a55    # bound by spinnaker
          name: nginx
          ports:
            - containerPort: 80
          volumeMounts:
            - mountPath: /opt/config
              name: my-config-map
      volumes:
        - configMap:
            name: configmap-v001                              # bound by spinnaker
          name: my-config-map

Why Not Pipeline Expressions?

Pipeline Expressions offer a great way of referencing pipeline context programatically using short snippets of code. Of course, it’s possible to construct expressions that would allow you to reference the Docker image’s reference that triggered a pipeline, or the name of the ConfigMap you deployed in a prior stage. However, we wanted an easier way to express updates to these resources, that left your Kubernetes Manifests natively deployable without making Spinnaker’s expression engine a hard dependency.
